4-13-4 Link-form

This feature is supported by Service Pack 2.

Add an existing form definition as a link-form.

Reference

  • For a form definition created prior to Service Pack 1, if a link-form has been added to Others in References, the link-form will be automatically moved to Link-Form when you open the form definition.

  • When you add a form definition to Link-Form in References, the name of the stored form definition is displayed in the Link-form name list in Paper properties.

You can add a form definition in the following methods:

  • Add a form definition directly into the form definition from the file reference item.

  • Add a form definition in References.

Add a form definition directly into the form definition from the file reference item

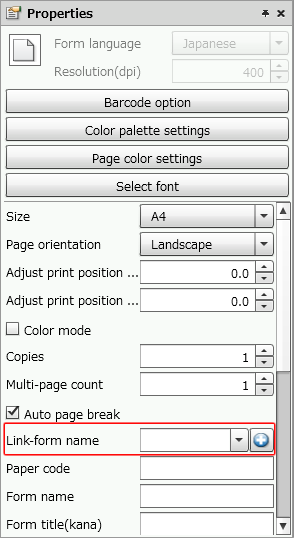

Link-form reference item for paper

  1. Click the swd92_button_plus.png Add file(s) to the form definition button in Link-form name in the Paper property.

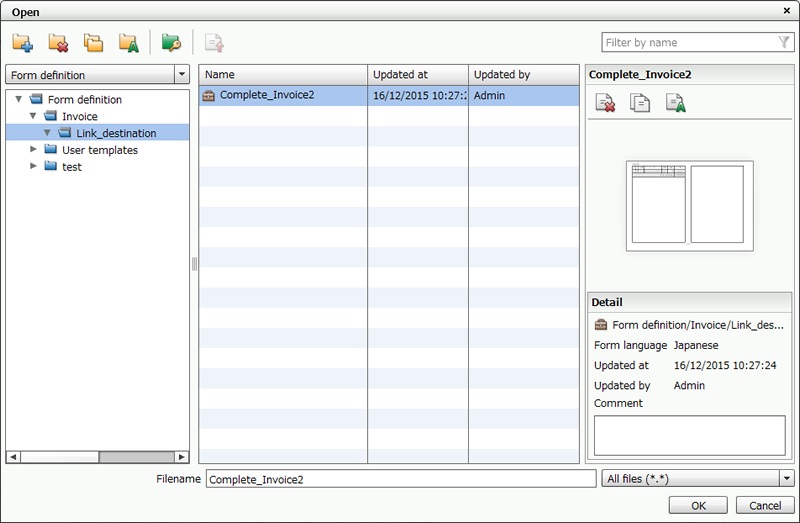

  2. On the Open dialog, select a form definition and click the OK button.


    Add a form definition

    Reference

    If you add a link-form using the method prior to Service Pack 1, you can also specify an uploaded file by selecting Other files.

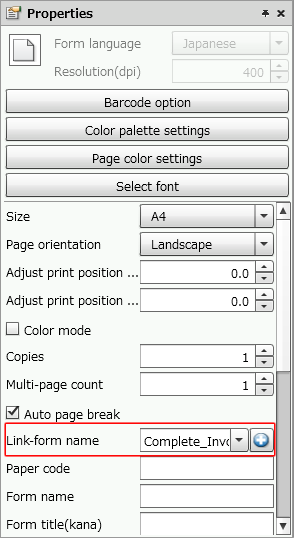

  3. The selected form definition is set to Link-form name.


    Specified as a link-form

Add a form definition in references

  1. Click the swd92_3-11-0_002.png References button on the left toolbar to open the References window.

  2. After selecting LinkForm, click the swd92_button_plus.png Add file(s) to the form definition button.

  3. On the Open dialog, select a form definition and click the OK button.


    Add a form definition

    Reference

    If you add a link-form using the method prior to Service Pack 1, you can also specify an uploaded file by selecting Other files.

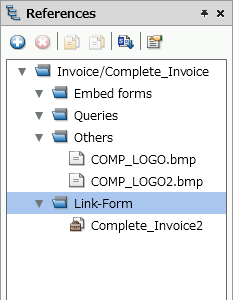

  4. The specified form definition is added to Link-Form in References.


    Added to link-form

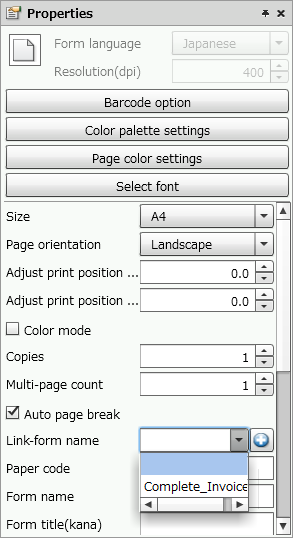

  5. Select a link-form from the Link-form name list in the Paper properties.


    Select a link-form

Reference

More than one form definition can be added to Link-Form in References. However, only one form definition can be specified as a link-form name in Paper properties.
